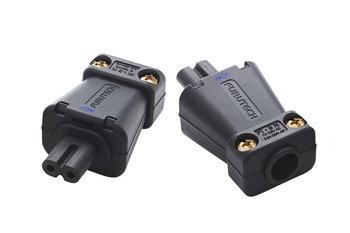

Furutech FI-8N (R) NCF - plug IEC C7
- C7 type 8 power plug for cable. All metal parts were made of non-magnetic materials (bronze, and copper) coated with rhodium.
Furutech FI-8N (R) NCF - plug IEC C7
High End Performance IEC Connectors
C7 type 8 power plug for cable. All metal parts were made of non-magnetic materials (bronze, and copper) coated with 24-carat gold.
Nano Crystal² Formula (NCF)
Incorporated into selected Furutech products, NCF features a special crystalline material that has two 'active' properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional 'piezoelectric effect' damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.
Furutech is known the world over for a huge variety of top-quality OEM parts and delivers consistently superior results by following Pure Transmission principles; examine every link in the power and signal path and ultimately optimize each and every element.
Rating
FI-8 N (Set screw Type) 7A/125V 2.5A/250V
Features
- Furutech’s unique female conductor design features α (Alpha) Beryllium copper and Phosphor Bronze conductors
- Material: Nylon / fiberglass with special “NCF” anti-resonance damping material - nano-sized crystalline, piezo ceramic particles and carbon powder main body.
Specifications:
- Specified for cable outer diameters of 6.0mm ~ 13.0mm
- Wire accommodation: Max. 2.4mm dia.(Solid core) // 2.0 Sq.mm/14AWG (Strand wire)
- Connections: Set screw.
- Dimensions: 36.8mm × 28.2mm × 71.0 mm ± 0.5mm overall length
- Rated: 7A/125V 2.5A/250V
