Jean Marie Reynaud (JMR) Lucia - White Pearl

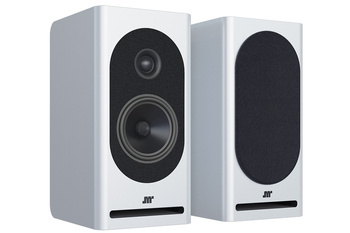

"LUCIA," which means ‘the light’ in Italian, is a compact 2-way bookshelf loudspeaker system with harmonious proportions.
Designed with the same rigor as the most advanced models in our range, it concentrates all the know-how of the JMR brand.
To remain faithful to our tradition, we wanted to develop a small and extremely musical loudspeaker that is also notably affordable and that offers realistic tonality and a very good spectral balance.
We have optimized its performance so that it can be used placed on a shelf or even on a desk
FINITION:
Blanc perle Noir satine
It offers a naturally warm, well articulated sound with a rich mid-range and a silky treble that is utterly without projection or hardness. Its energy is sufficient to fill a room from 10x to 20m convincingly with lively and embodied music.
Designed to work in combination with affordable electronics, its electroacoustic features offer a very easy load for amplifiers.
Its installation will not require any special precautions because thanks to a frontal laminar event port, it can be installed close to a wall. It offers a beautiful credible and very stable stereo image thanks to good phasing of its components.
It is the first step into the rich and ‘live’ universe of JMR sound.
TECHNICAL INFORMATION
ACOUSTIC ENCLOSURE
Bass reflex loading principal with laminar front event port. 19mm MDF cabinet assembled under press, round front edges to avoid edge effect on front baffle.
WOOFER:
Manufactured in France this small 13cm woofer has a coated paper cone animated by a 25mm coil on aluminum support. Its basket is made of ABS resonance free material. Its central ogive phase plug is made of rubber and so completely inert.
TWEETER:
Also manufactured in FRANCE, impregnated fabric dome with 25mm coil cooled by ferrofluid and textured ABS horn improving its efficiency and directivity.
CROSSOVER SECTION:
12bd/octave slope at 3500hz.
Hand crafted crossover printed board free using polypropylene capacitors and ferrite coil for the woofer with large section pure copper wire. All components are directly soldered one to the other with silver ROHS soldering.
NOTE :
Thanks to a very low directivity, it is not necessary to aim
aim the twotwo speakers at the ideal point of listening, but rather toeing them in slightly in order to benefit from the Better phase of the system.
It could be installed on a 50 centimeter high stiff stand but can also be directly set on a desk or into shelves.
The spacing will be determined experimentally. It is theoretically ideal around 1.5 meter axis to axis but this distance can be reduced or increased (minimum 1m, maximum 2.5 meters). Thanks to its front laminar event port, LUCIA can be installed close to the back wall without being completely backed, a distance of 10 to 15 centimeters is recommended.
ADDITIONAL INFORMATION
- Bandwidth 65 to 18khz
- Impedance 6 ohms (minimum)
- Power handling de 20 à 100W
- Sensitivity 85db/W/m (2V)
- Filter type 12db/octave crossover frequency 3500hz
- Connection Mono wire
- Dimensions L : 18cm P : 23cm H : 37cm
- Weight: 7,5kg
