GigaWatt G-044 schuko (EU)
- We do not ship Gigawatt products to the countries where there is a local distributor. Please check on Gigawatt official website.

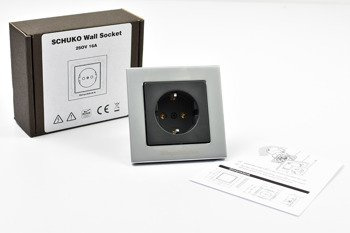

G-044 SCHUKO is a high quality in-wall power socket, designed to be used in home electrical grids powering audio-video systems.
The solid connectors of the socket are made from brass, and their surface is protected against oxidation. Powerful contact and large connection surface of the connectors with a width of 10mm guarantee perfect connection with the plug pins. Additionally the connectors were de-magnetized. As a standard, the sockets are equipped with bolted connectors allowing the usage of large diameter cables. Mounting depth is less than 30mm. Wall mount is possible using strong expansion feet or bolts.
The internal chassis is made from hard to break, high quality, matte plastic and has a grey finish. The faceplate is made from solid, anodized aluminum, 6mm thickness. On demand we can also supply a dual version of the socket (G-044 SCHUKO Duplex), consisting of two separate inlays and a double frame, that can be mounted horizontally or vertically.
NOTE: Installation works exposes to direct contact with potentially lethal voltage. There is risk of an electric shock! All activities related to installation can only be made by a qualified personnel following appropriate regulations (DIN VDE 0100 and IEC 664 or DIN VDE 0110).
Technical specification:
- Line voltage: 110-250 VAC / 50-60 Hz
- Maximum current load: 16 A
- Dimensions: 85 x 85 x 35,5 mm
- Gross Weight: 0,23 kg
