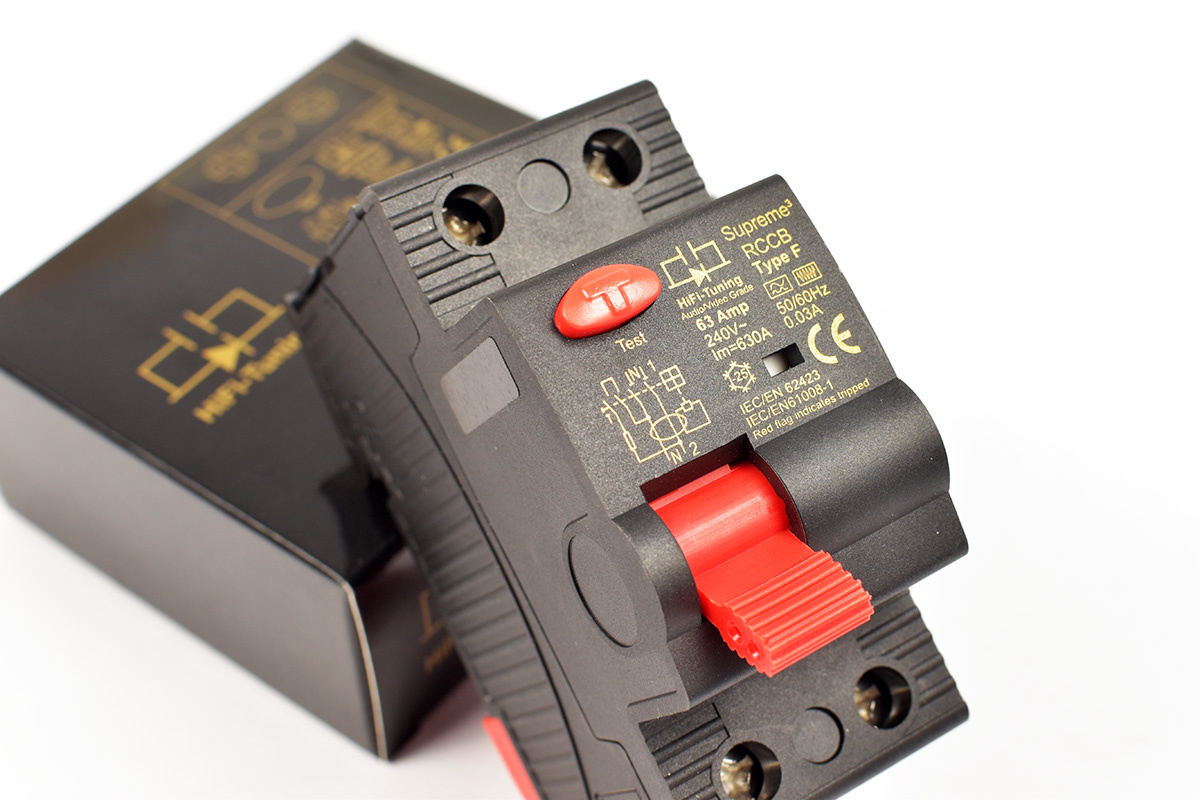

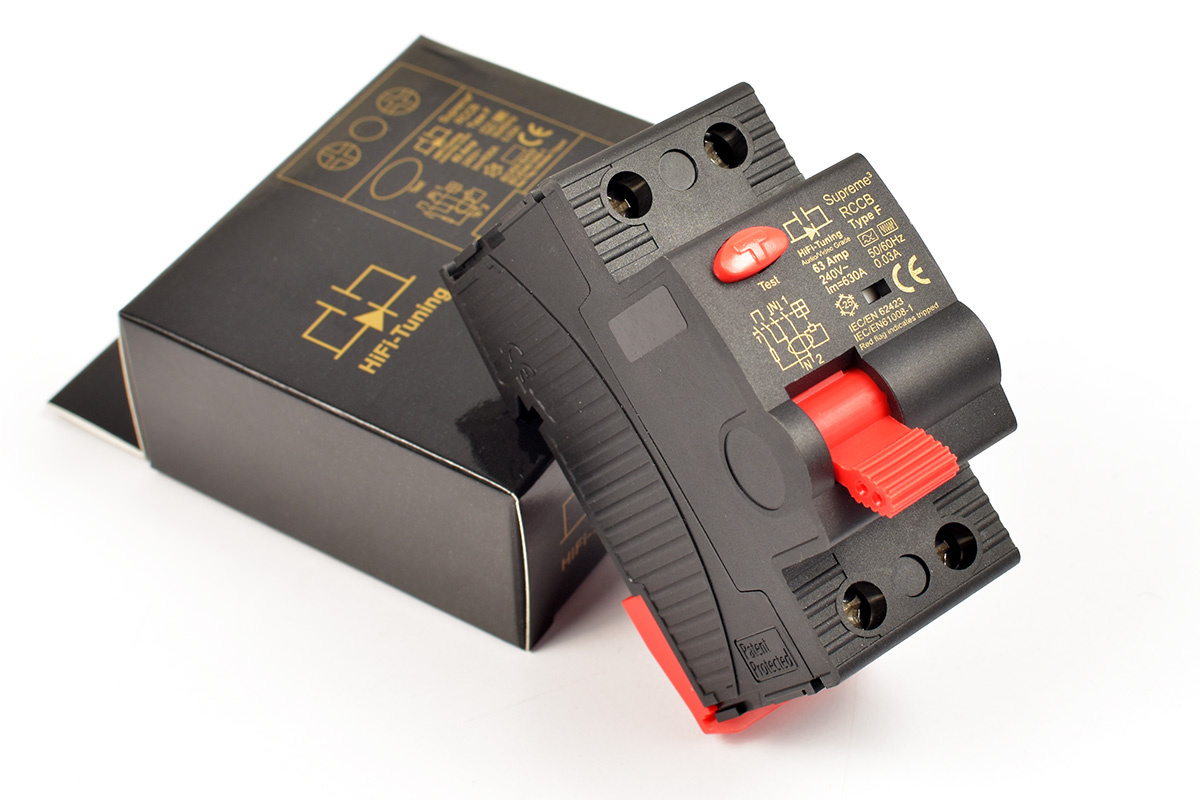

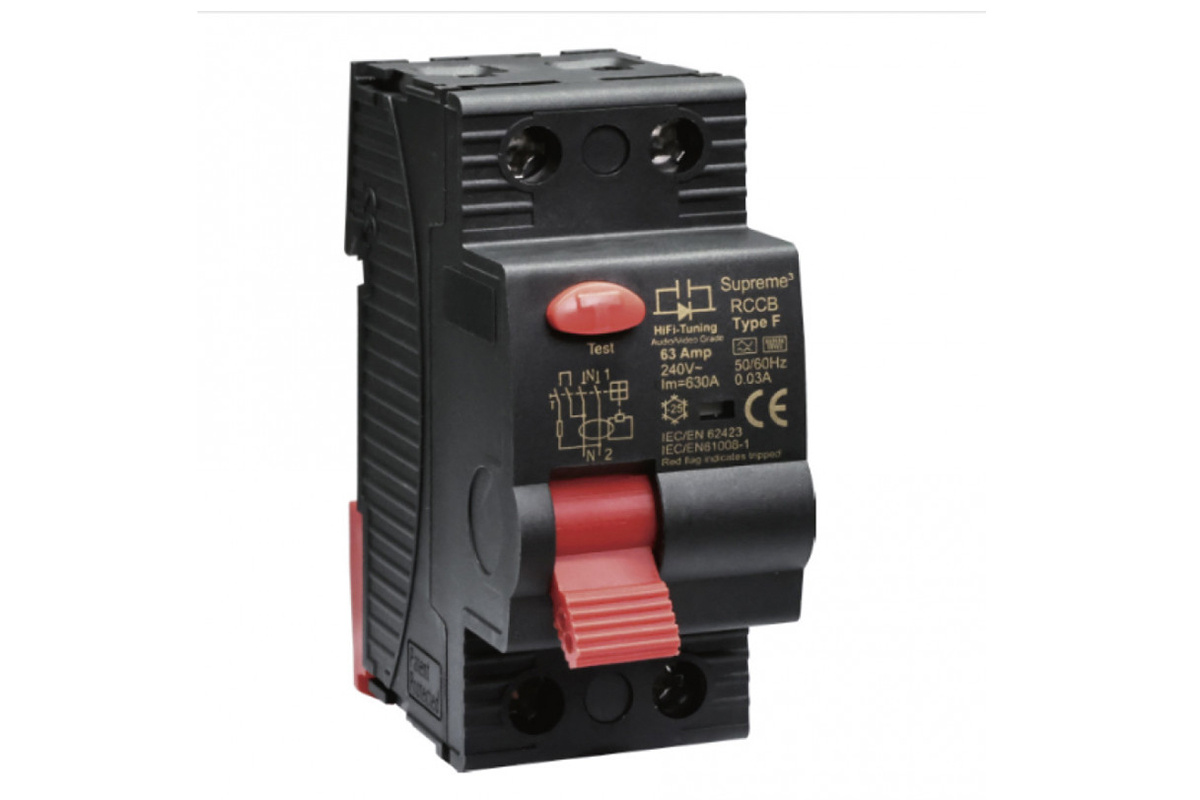

Hi-Fi Tuning Supreme³ RCCB Residual Current Circuit-Breaker Type F
- Type F RCCB in Supreme³ quality, as a sound upgrade for your entire HiFi / Video systems through the use of large area, solid copper/ silver contact materials, anti-magnetic stainless steel screws, completely in cryogenised quality.
Hi-Fi Tuning Supreme³ RCCB Residual Current Circuit-Breaker Type F
Type F RCCB in Supreme³ quality, as a sound upgrade for your entire HiFi / Video systems through the use of large area, solid copper/ silver contact materials, anti-magnetic stainless steel screws, completely in cryogenised quality.
Very low impedance with minimal losses. Type F is designed for detection of normal AC, pulsating DC with DC components and high frequency currents up to 1kHz.
SIMPLY TO REPLACED WITH THE STANDARD ONE BY A QUALIFIED TECHNICIAN
Technical data
Type (waveform of the earth leakage current) F
Rated current 63A
Poles 1P+N
Rated voltage 230/240V~
Rated frequency 50 / 60Hz
Rated sensitivity 30mA
Frequency response range 0-1000Hz
Insulation voltage 500V
Rated residual making and breaking capacity 500A (In=16-40A) , 630A (In=63A) , 800A (In=80A) , 1000A (In=100A)
Short circuit current 10kA
Break time under ≤0.1s
Rated impulse withstand voltage 4kV
Dielectric test voltage at ind. Freq. for 1 min 2.5kV
Pollution degree 2
Electrical life 2, 000
Mechanical life 10
Fault current indicator Yes
Protection degree IP20
Ambient temperature -25C to 55C
Storage temperating -30C to 70C

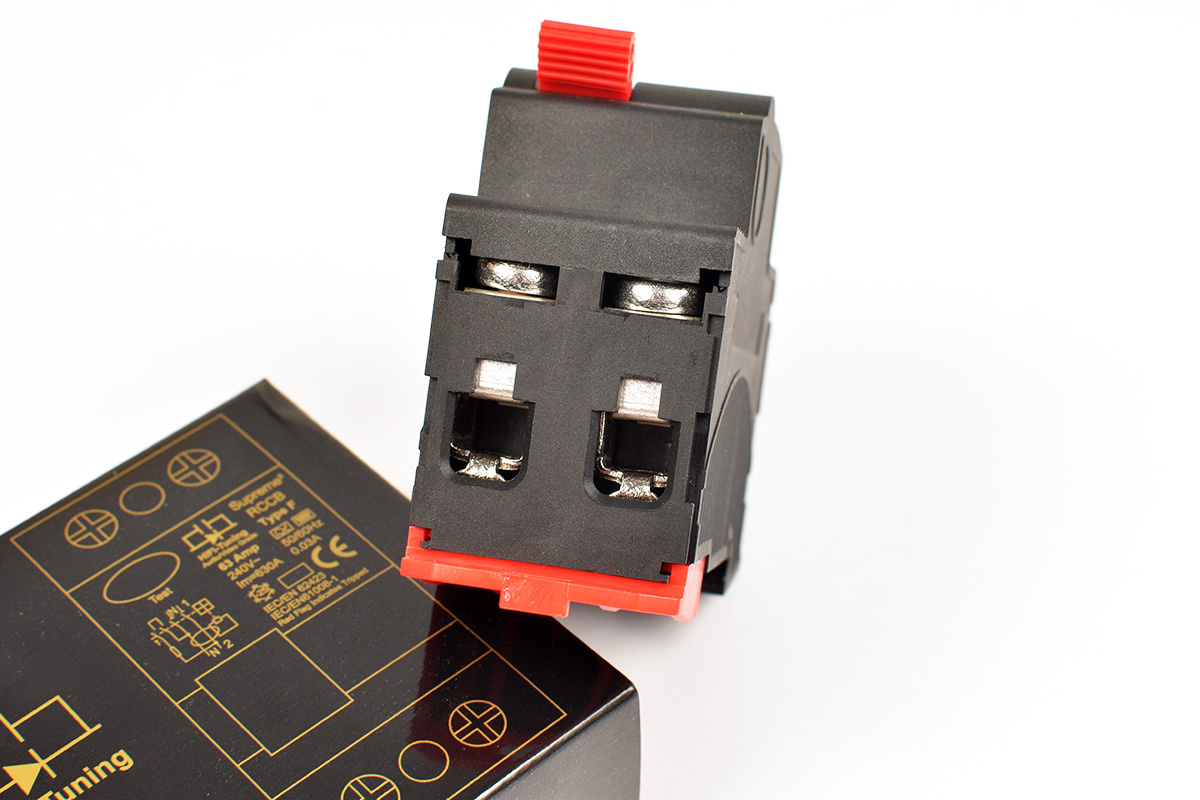

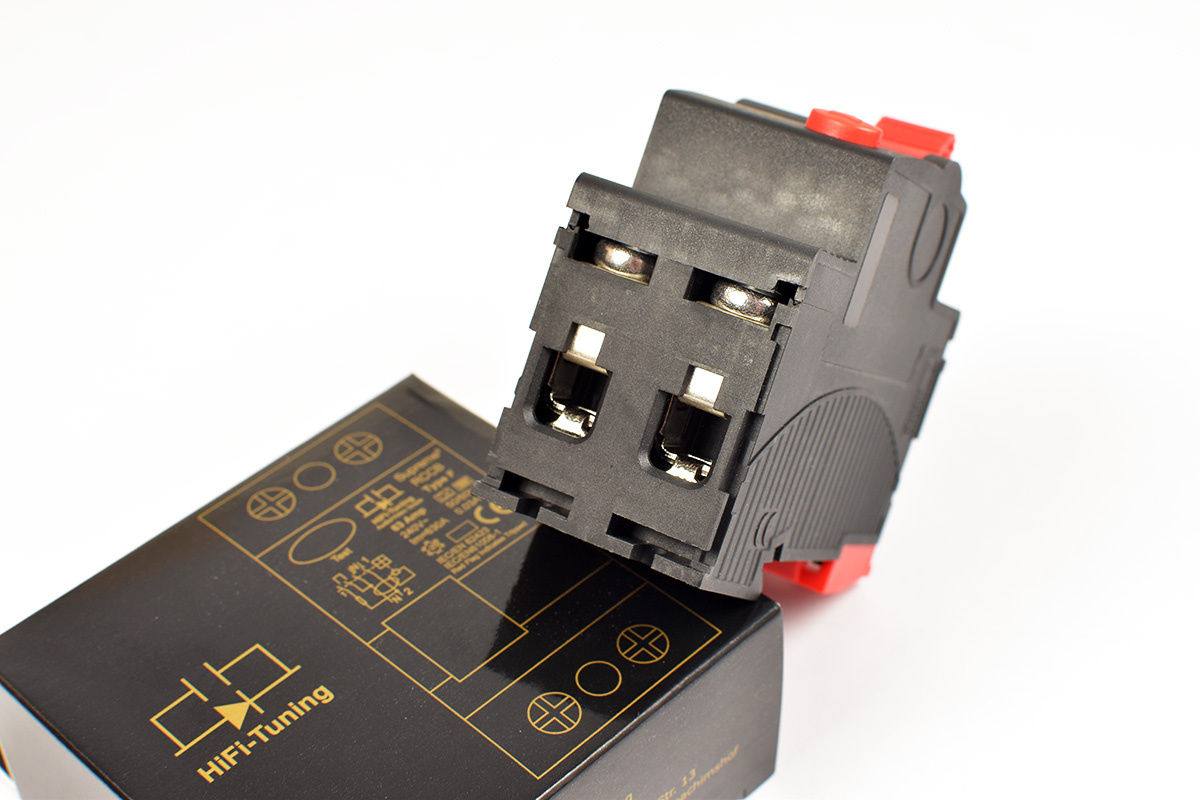

Terminal connection type Cable / bus bar
Terminal size top/bottom for cable 1-16mm²
Terminal size top/bottom for bus bar 10/16mm²
Tightening torque 2.5 Nm

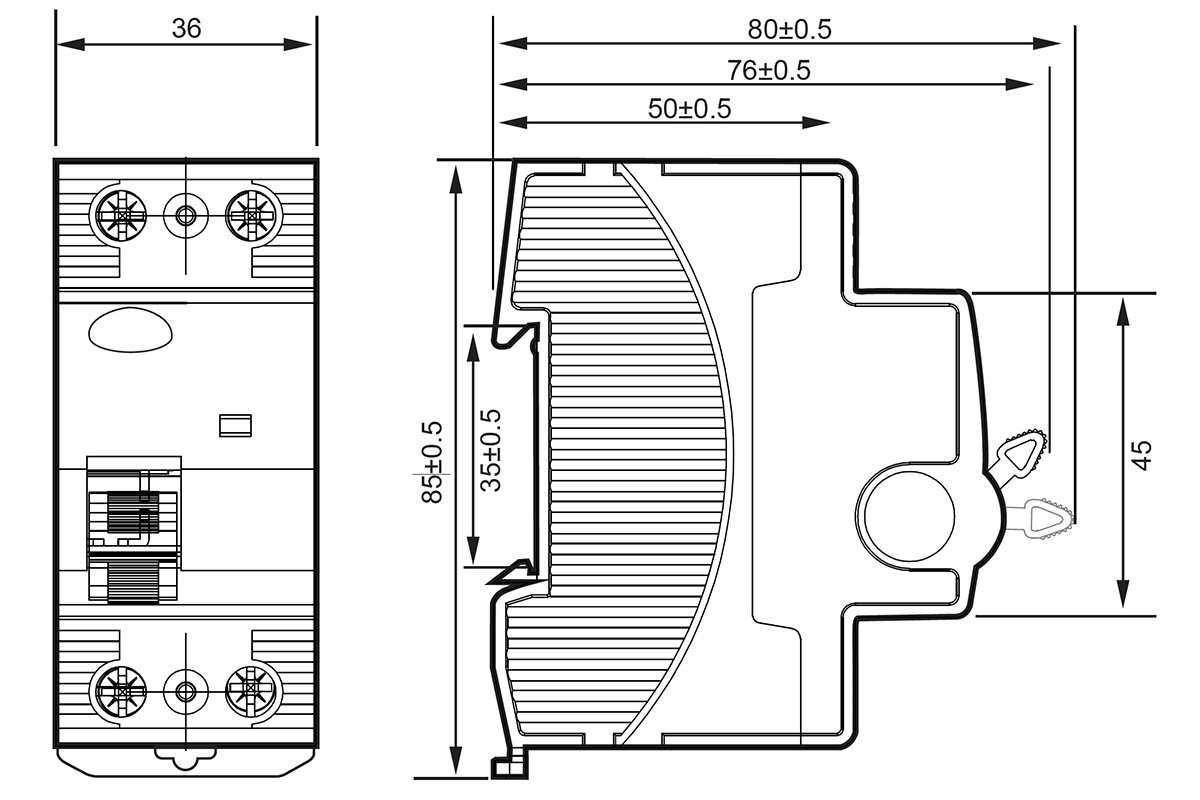

Mounting On DIN rail EN 60715 (35mm)
Standards IEC/EN 61008-1 , IEC/EN 62423
