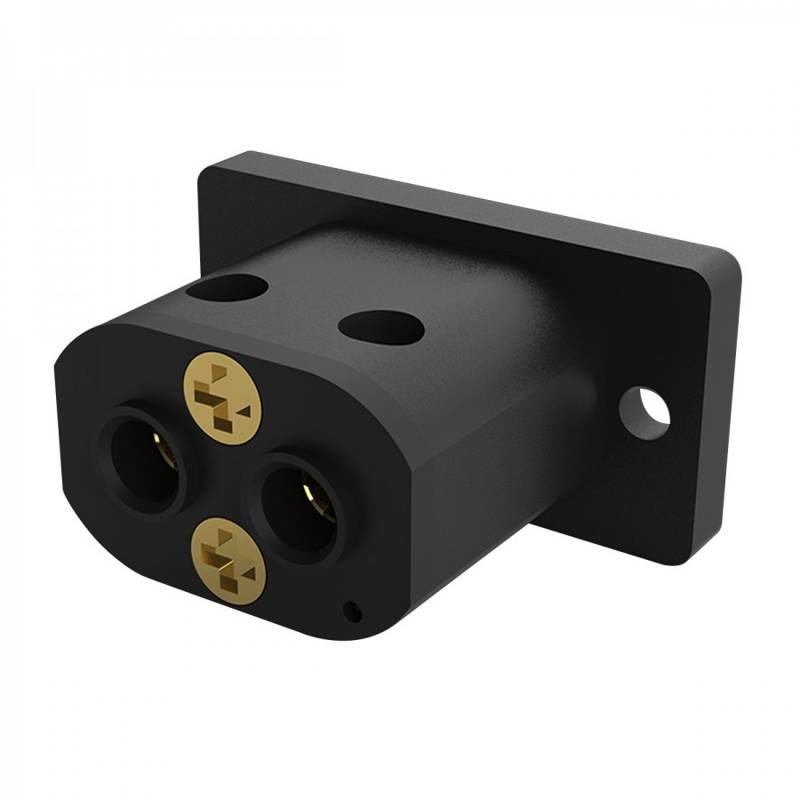

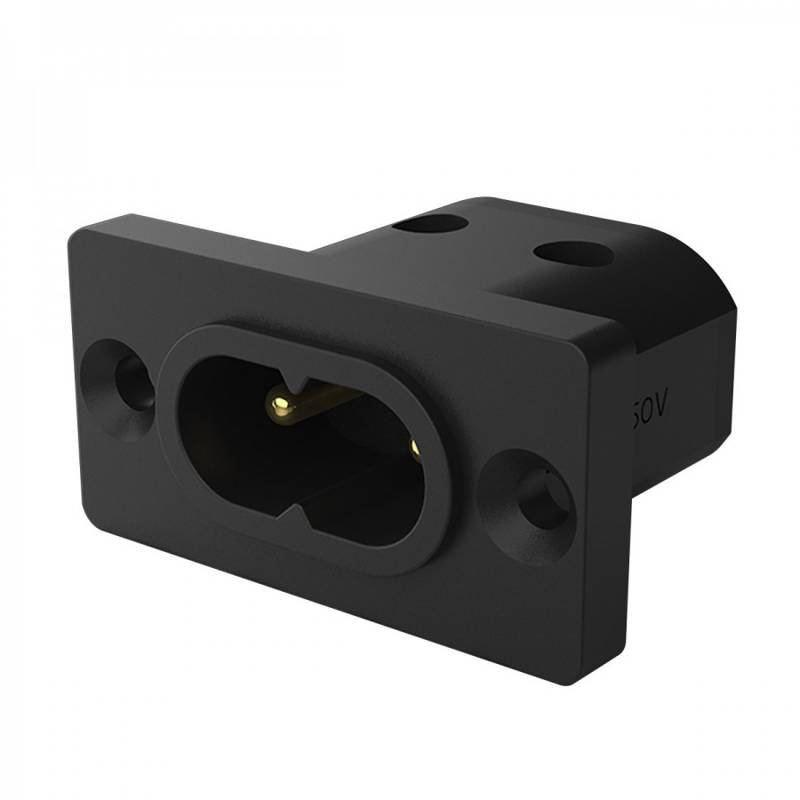

Viborg VI-08G - IEC C7 power inlet
- Highest quality IEC power inlet C7 IEC Viborg VI-08G. Contact elements made of pure copper gold plated.
Viborg VI-08G - IEC C7 power inlet
Model: VI08G
Material: Pure Copper (Purity about 99.998%)
Shell: DuPont PA66GF33+FiberGlass

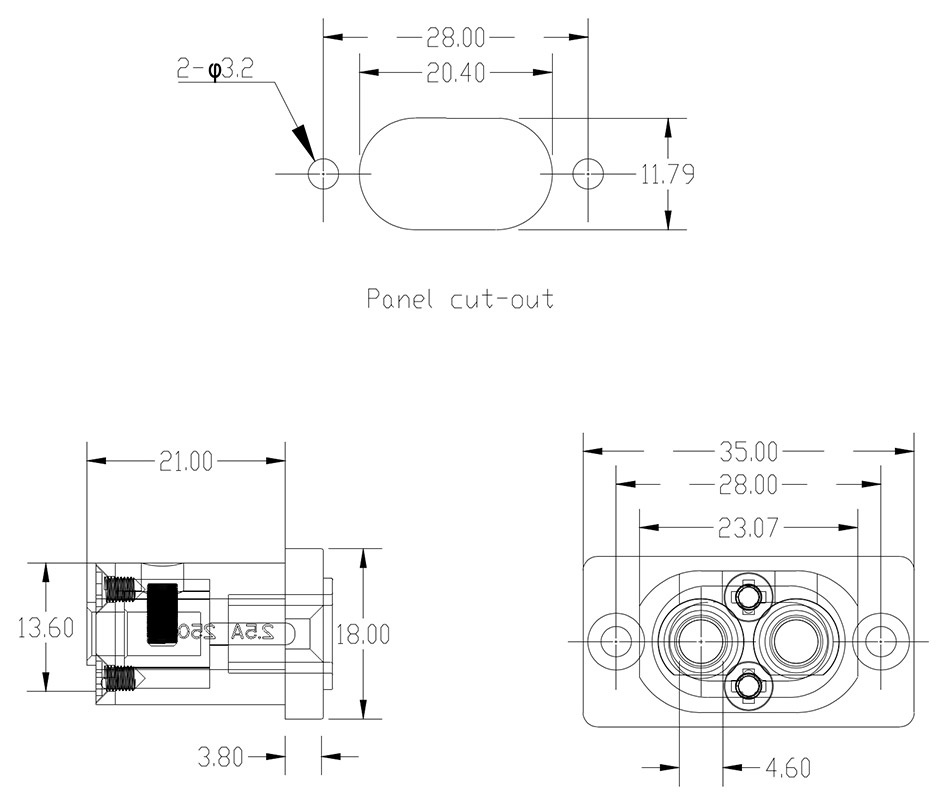

Dimensions: 18mm (W) x 35mm (D) x 25mm (H) ±0.1mm
Suitable Max Core: 4.6mm
Rated: 2.5A/250V
Mounting Size: 35mm x 18mm
Type: 2-pole C7 socket
Connect: Screws Locking

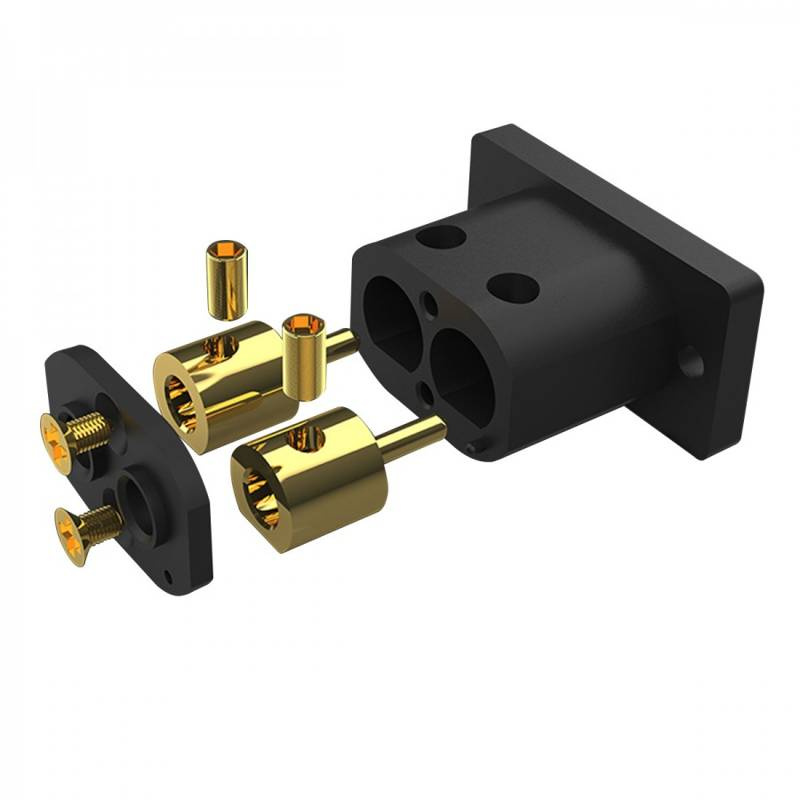

3-Layer Plating:
1. Oxygen Free Copper Plating
2. Electroless Silver Plating
3. 3μ Gold Plating
Technical specifications
Brand
Symbol
Viborg VI-08G - gniazdo montażowe IEC
Warranty
Contact surface
gold-plated
Colour
Black.
