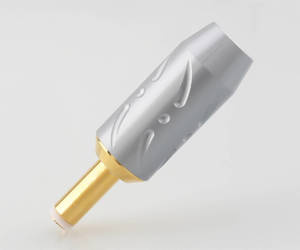

Viborg DC25G - plug for power supply

Highest quality DC cable plugs for audiophile applications.

Model: DC25G
Termination method: Solder.
Made with high quality brass, corresponding to RoHS directive.
Conductive pin is 24K gold non-nickel & non-magnetic plated.
Housing is brass with Chrome plated, for beautiful appearance, as well as durability.
Insulation: PTEF（Red color）
Plug Type: DC2.1G(φ 5.5 mm × φ 2.5 mm)
Rating: 12V / 0.5 A

A large cable entry diameter of 9mm to accommodate larger OD cable.
Screws locking Crimp cable
Use for new DC cable construction, or as a DC plug replacement for AC/DC adapters, etc.

Dimension: 46mm*13.2mm
