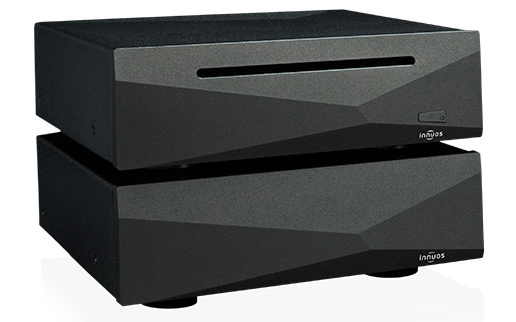

Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU
Innuos ZENmini Mk3 + LPSU

Innuos ZENmini Mk3 + LPSU

  • Our ZENmini + LPSU combines the size and flexibility of the ZENmini Mk3 with the sound quality benefits of our LPSU to provide an audiophile-grade server with a smaller footprint.
$2,653.90 - $3,009.45
incl. VAT / pcs.
Size
Express checkout 1-Click(without registration)
Product available
Product available
14 days for free returns
This product is not available in a stationary store
Safe shopping
Warranty 24 months

Innuos ZENmini Mk3 + LPSU

Our gateway server with all the full benefits of innuOS, now with improved connectivity and a new upgrade path for even greater flexibility. Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.

  • CD Ripper,
  • NAS and Streamer
  • Compact design with quiet, fanless operation
  • Versatile HiFi connectivity with analog and digital outputs
  • Roon Core and Endpoint
  • Custom audio treated components
  • Upgradeable with Linear Power Supply

Powered by innuOS
innuOS allows complete Music Library management
using a tablet or smartphone

Looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.

Convenient Design
With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs - from CD ripping to purchased downloads, Internet Radio to Spotify Connect.

Hi-Fi Engineering
The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.

Perfect CD Player replacement
Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.

Powerful Performer
Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.




AUDIO OUTPUTS

Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
Coaxial S/PDIF up to 24bit/192KHz
Optical S/PDIF up to 24bit/96KHz
Analogue Output RCA Analogue up to 24bit/192KHz


CONNECTIVITY

Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB 4x USB 3.0


FORMATS

CD Formats Red Book
Disc Compatibility CD, CD-R, CD-RW
Audio format for stored CDs FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs


SAMPLE RATES

Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths 16bit, 24bit, 32bit


USER CONTROL INTERFACES

Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile App for iPhone/iPad, Android and Windows 10


HARDWARE

CD/DVD drive TEAC Slot-loading drive
Hard Drive 1TB WD Red HDD
CPU Intel Quad Core N4200
Memory 4GB DDR3


STREAMING AND CD STORAGE

UPnP/DLNA Integrated UPnP Server
Streaming Services Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility Roon Core and Roon Bridge
Average CD Storage Time 5 minutes
CD Metadata FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems Sonos Multi-room Wireless Music System
DLNA/UPnP compatible streamers
USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD


REQUIREMENTS

Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)


POWER

Mains Supply Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
Power Consumption 10W when idle, 15W peak


PHYSICAL

Dimensions 74 x 214 x 240 mm (H x W x D)
Weight 4,5 Kg
In the box Innuos ZENmini Mk3 1TB Music Server
AC/DC Power Adapter
Mains Cable
2m Ethernet Cable
Getting Started leaflet

REVIEWS & AWARDS

The price-performance ratio of the Innuos ZENmini Mk3 is quite outstanding

Fairaudio give a fantastic review to the ZENmini Mk3, where Good workmanship meets an exemplary intuitive user interface - not only the app, but also the browser-based music server management interface. They were also greatly impressed by the sheer resolution and - especially - the wonderfully vivid, precise and spacious presentation of its sound quality.

Innuos ZENmini LPSU

Optional Linear Power Supply upgrade for improved sound quality in matching chassis.
Backwards compatible with the ZENmini MkII.


POWER

  • Mains Supply 230V AC / 115V AC - Internal Linear Power Supply
  • DC Output DC 16V, 3A maximum
  • Connector 2.5 x 5.5mm barrel plug


PHYSICAL

  • Dimensions 74 x 214 x 240 mm (H x W x D)
  • Weight 4 Kg
  • In the box Innuos ZENmini LPSU
  • DC Connection cable with barrel plug
  • Mains Cable
  • Getting Started leaflet
Technical specifications
Brand
Symbol
Innuos ZENmini Mk3 + LPSU
Producer code
1TB + LPSU0789091601586
2TB + LPSU0789091601593
4TB + LPSU0789091601609
Warranty
Colour
Black.
Variant
ZENmini Mk3 + LPSU
