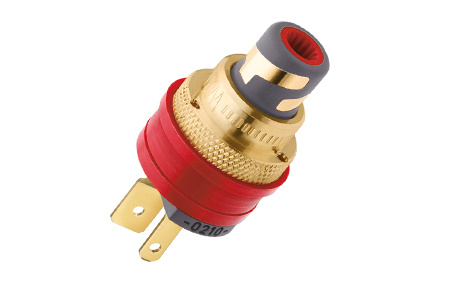

WBT 0210 CuMs nextgen Topline, RCA sockets

WBT 0210 CuMs nextgen Topline, RCA sockets

  • RCA sockets for use in audio devices. Often the replacement of sockets, eg in an amplifier, can significantly improve the sound quality.
incl. VAT / pair
Express checkout 1-Click(without registration)
Product available in a very large amount
Product available in a very large amount
14 days for free returns
Safe shopping
Warranty 24 months
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from $12.76 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order $12.76 are for free.
Free delivery includes parcel delivery to a parcel machine

WBT 0210 CuMs nextgen Topline, RCA sockets

RCA sockets for use in audio devices. Often the replacement of sockets, eg in an amplifier, can significantly improve the sound quality.

Special attention should be paid to WBT products - the world leader in the best quality connectors in hi-fi and hi-end class devices.

Profile in brief: WBT-0210 Cu Ms:

  • 75 ohms (typ.) characteristic impedance

  • Totally distortion-free (no eddy currents)

  • Ultimate conductivity (signal conductor made of pure copper)

  • Inner contact designed as tulip contact with spring ring

  • Outer contact in the form of a pat. double wave contact

Product description:

75-ohm characteristic impedance means that these sockets not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz.

The contact elements of the connector are made of high-purity copper, one of the best electrical conductors, in order to ensure optimum signal transmission. The metal is gold-plated (nickel-free) so that the surface does not oxidise and impair contact quality.

The inner contact is an active spring contact. The newly developed three-segment tulip contact is pressed onto the central pin of the RCA plug by a surrounding double bronze spring ring. Not only does this ensure reliable contact with non-standardised RCA plugs but contact also remains reliable even after the plug has been connected and disconnected many times over.

The outer contact is in the shape of a double wave which encompasses the socket element made of robust Ultramid*. This wave shape guarantees reliable contact with any RCA plug. In addition, the reduction in the amount of conductor material to the absolute minimum prevents the creation of eddy currents, enabling the WBT-0210 to transmit signals that are totally free of distortion.

Eddy currents occur in metal components near to which alternating current flows. These currents can result in major signal distortions.

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts and double step washers with lug are also supplied. The nut of WBT-0210 Ag Ms is made of brass with a gold-plating finish.

*Ultramid is a registered trademark of BASF.


  • Characteristic impedance (typ.): 75 ohms

  • Connection technology (inside): soldering

  • Borehole: 12mm dia. (also data sheet)

  • Identification: available in 9 colours
Technical specifications
WBT 0210 CuMs nextgen Topline, gniazda RCA
Producer code
Contact surface
Plug Type
