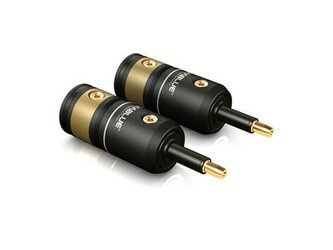

Viablue T6s 3.5 Mini Toslink plugs

Viablue T6s 3.5 Mini Toslink plugs

ViaBlue™ T6s mini toslink plugs have 24 carat gold-plated contact pins. The shells are made of aluminum. Cables up to 9.5 mm diameters can be installed. All connectors of the T6s series are supplied including two diameter decreasers. Those diameter decreasers make an assembly of cables with small and big diameter possible and grant a firm strain relief.

To mount ViaBlue™ mini toslink plugs on optical toslink cables the stripped ends of the fiber optic cable have to be pushed through the contact part of the T6s mini toslink plug. The outstanding optical cable has to be grinded wet and polished smoothly. The contact parts can be removed completely from the plug's shell. The M4 screw serves as strain relief. The shell for all plugs (exception: XLR plugs) of the ViaBlue™ T6s series is identical. Only the contact parts change.

Flexibly applicable. For all cable diameters.

Each T6s plug contains two diameter decreasers which serve for a firm strain relief and centric adjustment of the cables. The small diameter decreaser has an outer diameter of 7.5 mm and an inner diameter of 4.5 mm. Thus cables with an outer diameter of 3 mm up to 4.5 mm can be fixed firmly. The big diameter decreaser has an outer diameter of 9.5 mm and an inner diameter of 7.5 mm. Thus cables with an outer diameter from 5 mm to 7.5 mm can be fixed firmly. Without using any diameter decreaser cables with diameters from 7.5 mm to 9.5 mm can be installed.

Technical specifications:

• Max outer diameter: 13.5 mm


• Contact: Minitoslink DIN norm


• Finishing: 24 Karat Gold plated


• Total length: 46.0 mm


• Max cable input: for cables with Ø 3 - 9.5 mm


• Marking: black


• Screws: 1.5 mm Hexagon
