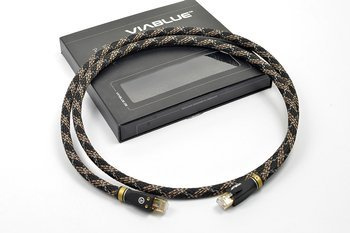

ViaBlue EP-7 SILVER RJ-45 CAT6A - Ethernet/LAN cable

Silver-plated strands made of pure OFC copper

100% shield coverage by a total of 5 layers (braided shield and 4 aluminium foil shields). This prevents any distortion and jitter no matter which frequency such as mobile phone signals

Soft banding
Satin mat sheath: highly flexible and ultra resistant

ViaBlue™ EP-7 Silver network cables are fitted with ViaBlue™ T6s RJ-45 LAN plugs and ViaBlue™ Cobra braided sleeves.

Learn more about ViaBlue™ T6s RJ-45 LAN plug.

Technical specifications:

• Silver-plated OFC copper strands


• 100% shield coverage: 1 braided shield, 4 aluminium foil shields


• Insulation: Highly flexible and extremely resistant sheath


• Outer diameter of cable incl. braided sleeve: 9.5 mm


• AWG 26/7


• Bending radius 4 x Ø


• Operating capacity, nominal 45 nF / km


• Relative propagation velocity, approx. 0.76 C


• Characteristic impedance 1-100 MHz = 100 +/- 15 ohms


• Characteristic impedance = 100-250 MHz = 100 +/- 22 ohms


• Characteristic impedance 250-600 MHz = 100 +/-25 ohms


• Shield attenuation up to 600 MHz > 60 dB


• T6s RJ-45 plug | gold plated


• Cat6A
