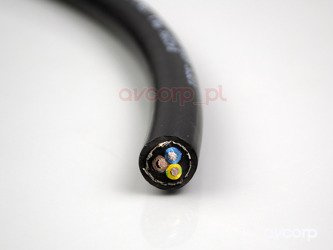

DIY: ViaBlue X-25 Silver Power Cable - (on meter)

DIY: ViaBlue X-25 Silver Power Cable - (on meter)

Fully shielded power cables are crucial for high quality audio and video systems.

ViaBlue™ power cables block any distortion and thus provide crystal clear and high-purity signals.

100% shielding due to braided shield and aluminium foil sheets

Silver plated copper strands, 3 cores

Certified standards include in cable by meter: VDE (2,5mm²), HAR (2,5mm²), UL, CSA, CE

Maximum hold through double-screwed strain relief

Available pre-assembled with ViaBlue™ T6s power plug, Cobra sleeve and ViaBlue™ Ferrite Filter.

Technical specifications:

• Wire cross-section X-25: 3x 2.5 mm²


• Wire cross-section X-40: 3x 4.0 mm²


• Wire cross-section X-60: 3x 6.0 mm²


• Cable diameter including braided sleeve X-25: 14.5 mm


• Cable diameter including braided sleeve X-40: 16.0 mm


• Cable diameter including braided sleeve X-60: 18.5 mm


• Shield structure: ALU-PE foil as well as 32x 0.10 strands GS


• 2 layers: aluminium foils and braided shield


• Finishing: silver plated / tin plated


• Insulation resistance: > 20 MOhm x KM


• Insulation: PVC, TM2 mix VDE 0472


• Certified testing voltage: 3000 Volt


• Strand identification: black | Blue | yellow-green


• Certifications of cable by meter: VDE (2,5mm²), HAR (2,5mm²), UL, CSA, CE
