  • Supra DAC is a really rapid response interconnect thanks to its extremely low capacitance.
$141.13 - $160.94
incl. VAT / pair
Size
Express checkout 1-Click(without registration)
Product available
Product available
14 days for free returns
This product is not available in a stationary store
Safe shopping
Warranty 24 months
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from $12.38 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order $12.38 are for free.
Free delivery includes parcel delivery to a parcel machine

Supra DAC - A lightning-fast interconnect cable with no brakes

Supra DAC is a really rapid response interconnect thanks to its extremely low capacitance. In accordance with our design philosophy, the inductance must be low for a loudspeaker cable whereas for a signal interconnect the capacitance must be kept to a minimum. Supra DAC is insulated with a special PE plastic which exhibits only 45 pF/m. Further it is foamed and encloses a lot of the cheapest, yet most efficient insulation; Air. More correctly insulation should be denominated dielectricum according to the physical laws, where there actually does not exist anything called insulation. Every substance, gas, fluid or solid, exhibits electrical properties, where the trick is to find and choose the most benign. Air is easily available, cheap and shows very good dielectrical properties compared to its price. When the PE is foamed, the residual amount of PE becomes like a sponge, hence further reducing its electrical influence on the fragile music signal. The enclosed air becomes the major dielectricum and results in an electrical locomotion without brakes; full dynamics, response time and 3D sound stage, you simply will not come any closer to the real live experience. Further it is shielded with our very efficient and strong semi-conductive nylon ribbon, keeping all malicious noise out.
The velocity factor of SUPRA DAC is as high as 78% of the speed of light. With the PTFE/Teflon, often used among our competitors, it would have been only 71%.

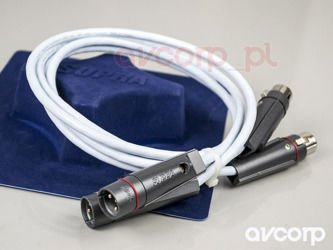

Supra DAC-XLR - Analogue Balanced Interconnect.

The above Supra DAC cabel provided with our finest XLR connectors Supra Swift XLR a ruggedly designed to sustain the tough professional handling on the road shows. Heavy-duty 24K gold plating for solid connections over and over again in virtually any climate and humidity. Best applied between CD player, DAC (Digital to Analogue Converter), pre-amplifier and power amplifier in finest home hifi, pro-sound and studio.

Mechanical Specifications

Cross section area 0.54 / 20 mm/ AWG
Number of strands per lead 19 pieces
Strand diameter 0.19 mm
Conductor material Oxygen free 5N copper
Insulation PE Foam (air filled)
Screen Coverage 100% semi-conductive nylon
Jacket Heat & age resistant PVC
External diameter 6.1 mm
Weight Not applicable g/m



Electrical performance

Resistance 8.1 Ohm/km
Inductance 0.28 uH/m
Capacitance 45 pF/m
Characteristic impedance 110 Ohm
Velocity factor 0.78 x C (speed of light)



Technical specifications
Symbol
Supra DAC-XLR
Producer code
1m7330060053535
2m7330060053542
Warranty
Lenght
1m
2m
Conductor type
OFC
