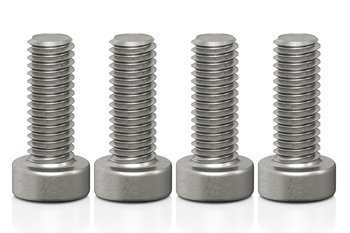

Viablue Screw flat M8 x 16 - mounting screws
- Viablue Screw flat M8 x 16, 4 pcs set.
Viablue Screw flat M8 x 16 - mounting screws
VIABLUE™ premium stainless steel screws, nuts and diameter decreasers are used to safely mount spikes and absorbers to loudspeakers and devices.
Premium stainless steel diameter decreasers M6 are used for a centric assembly of M6 screws to M8 threads.
Item-No: 50440
| VIABLUE™ sizes mounting screws | |||||
|---|---|---|---|---|---|
| Item-No. | Description | Length | Head-Ø | Head height | Pitch |
| 50440 | M6 x 16 FLAT | 16 mm | 10 mm | 4 mm | 1 mm |
| 50442 | M6 x 16 ULTRAFLAT | 16 mm | 14 mm | 2.5 mm | 1 mm |
| 50445 | M8 x 16 FLAT | 16 mm | 13 mm | 5 mm | 1.25 mm |
| 50446 | M8 x 16 ULTRAFLAT | 16 mm | 16.5 mm | 3 mm | 1.25 mm |
- Screw M6 x 16 FLAT: Assembly with 4 mm Allen key
- Screw M6 x 16 ULTRAFLAT: Assembly with 4 mm Allen key
- Screw M8 x 16 FLAT: Assembly with 5 mm Allen key
- Screw M8 x 16 ULTRAFLAT: Assembly with 5 mm Allen key
- Outer Ø stainless steel diameter decreaser: 12.75 mm
- Inner Ø stainless steel diameter decreaser: 6.2 mm
Our VIABLUE™ Set-Up Guide provides you with a detailed manual, as well as an overview over all assembly options:
