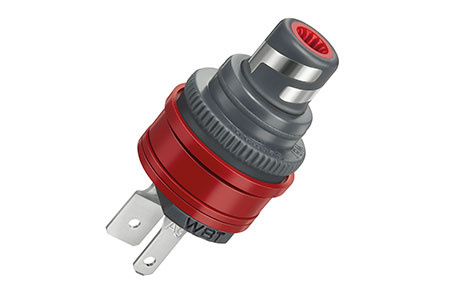

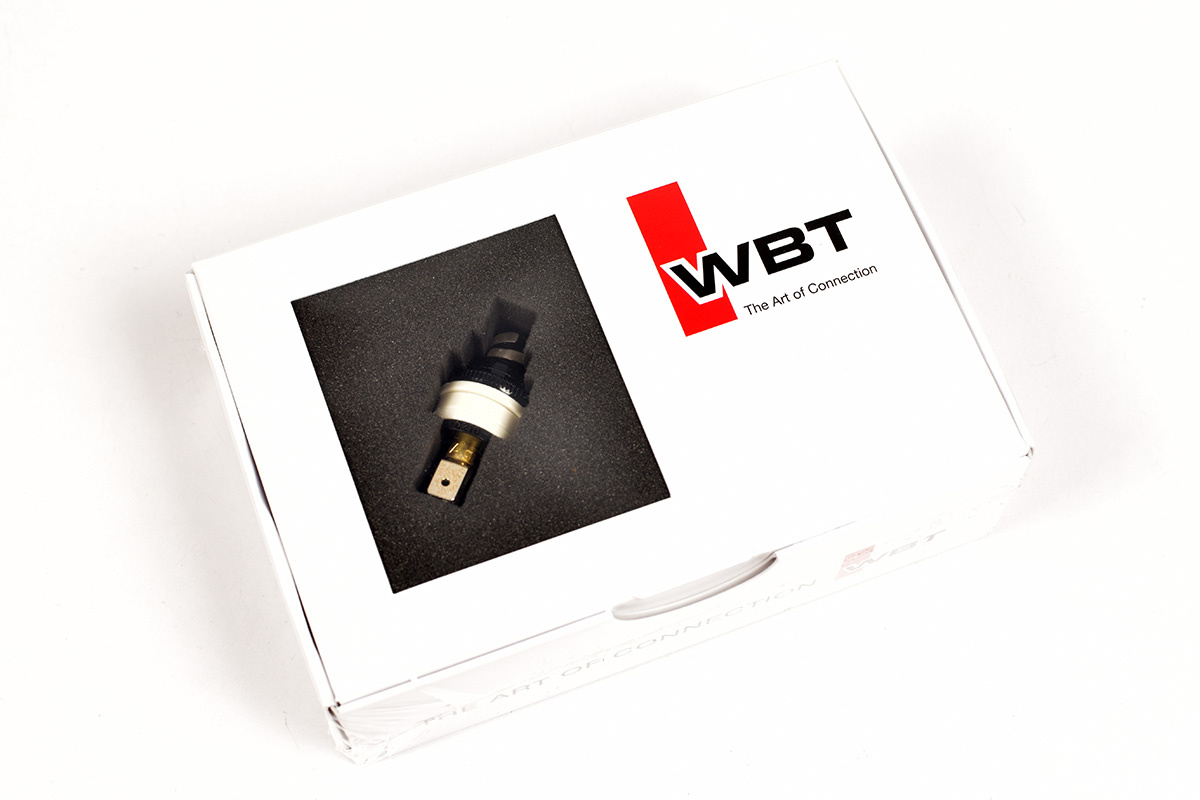

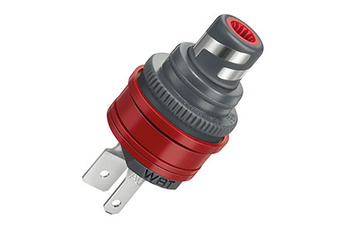

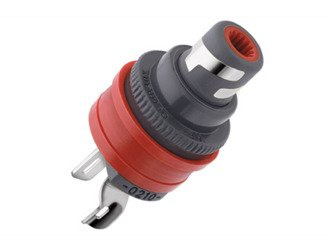

WBT 0210 Ag nextgen Signature, RCA sockets

WBT 0210 Ag nextgen Signature, RCA sockets

  • RCA sockets for use in audio devices. Often the replacement of sockets, eg in an amplifier, can significantly improve the sound quality.
$146.03
incl. VAT / pair
Express checkout 1-Click(without registration)
Product available
Product available
14 days for free returns
This product is not available in a stationary store
Safe shopping
Warranty 24 months
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from $12.70 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order $12.70 are for free.
Free delivery includes parcel delivery to a parcel machine

WBT 0210 Ag nextgen Signature, RCA sockets

RCA sockets for use in audio devices. Often the replacement of sockets, eg in an amplifier, can significantly improve the sound quality.

Special attention should be paid to WBT products - the world leader in the best quality connectors in hi-fi and hi-end class devices.

Profile in brief: WBT-0210 Ag :

  • 75 ohms (typ.) characteristic impedance

  • Totally distortion-free (no eddy currents)

  • Ultimate conductivity (signal conductor made of high-purity silver)

  • Inner contact designed as tulip contact with spring ring

  • Outer contact in the form of a pat. double wave contact

Product description:

75-ohm characteristic impedance means that these sockets not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz.

The contact elements of the connector are made of high-purity silver, the best electrical conductor of all, in order to ensure optimum signal transmission. The metal is passivated so that the surface does not oxidise and impair contact quality.

The inner contact is an active spring contact. The newly developed three-segment tulip contact is pressed onto the central pin of the RCA plug by a surrounding double bronze spring ring. Not only does this ensure reliable contact with non-standardised RCA plugs but contact also remains reliable even after the plug has been connected and disconnected many times over.

The outer contact is in the shape of a double wave which encompasses the socket element made of robust Ultramid*. This wave shape guarantees reliable contact with any RCA plug. In addition, the reduction in the amount of conductor material to the absolute minimum prevents the creation of eddy currents, enabling the WBT-0210 to transmit signals that are totally free of distortion.

Eddy currents occur in metal components near to which alternating current flows. These currents can result in major signal distortions.

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts and double step washers with lug are also supplied.

*Ultramid is a registered trademark of BASF.

Specifications:

  • Characteristic impedance (typ.): 75 ohms

  • Connection technology (inside): soldering

  • Borehole: 12 mm dia. (also see data sheet)

  • Identification: available in 9 colours
Technical specifications
Brand
Symbol
WBT 0210 Ag nextgen Signature, gniazda RCA
Producer code
634065595777
Warranty
Contact surface
posrebrzane
Plug Type
RCA
